L.K.S MH-DA005 9038Pro Dual Mono DAC – Ultra High-Performance Digital-to-Analog Converter

Unleash world-class digital performance with the L.K.S MH-DA005 DAC, a reference-grade converter featuring dual ESS ES9038PRO chips in a fully balanced, dual-mono configuration. Engineered for uncompromising sound quality, it blends meticulous circuit design, premium components, and audiophile-focused features to deliver an immersive and lifelike listening experience.

🔧 Key Features & Technical Highlights

Dual ES9038PRO DAC Chips for maximum channel separation and resolution

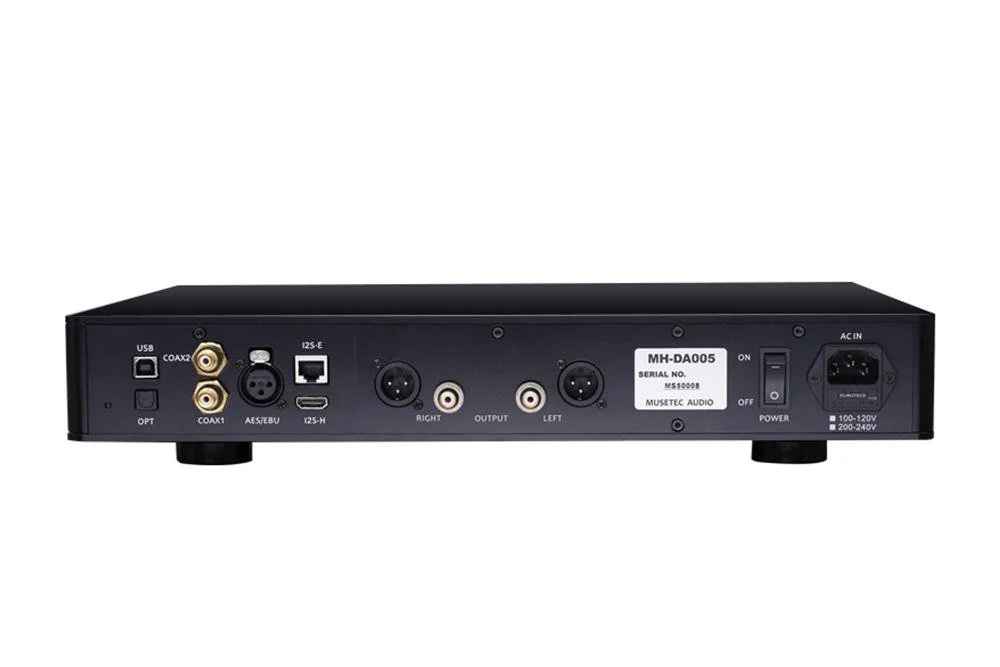

Multiple Inputs: USB, Coaxial x2, Optical, AES/EBU, I2S-E, I2S-H
USB Support: PCM 44.1kHz–384kHz, DSD64–DSD512
I2S Support: PCM up to 384kHz, DSD512, DoP64
Coaxial, Optical & AES/EBU: PCM up to 192kHz, DoP64
Outputs:
- RCA Single-Ended: 2Vrms
- XLR Balanced: 4Vrms
Digital Volume Control with 0.5dB attenuation steps
User-Selectable Filters, DPLL settings, and DSD channel swap
DoP Mode & Enhanced Mode Toggle
Large VFD Display with adjustable brightness and auto-dim function
Fully Functional Remote Control with standby power
Frequency Response: 0–20kHz ±0.2dB
Dynamic Range: >136dB
THD+N: <0.0002%
Stereo Separation: >120dB

💎 Premium Audiophile Design

Advanced Regenerative Power Supply with 18-channel ultra-low noise regulators
4 Ultra-Low Jitter Master Clocks
Mundorf, Audionote, GAD & MIT Capacitors for smooth, clean power delivery
Fully Discrete Output Stage – balanced and single-ended paths with low-drift resistors
Tellurium Copper RCA Terminals with Gold-Silver alloy leads
Pure Silver Jensen Internal Wiring
Furukawa FI-03G Power Connector
6-Layer Heavy Metal PCB for noise isolation
Premium All-Aluminium Chassis – sturdy and acoustically inert
Size: 430 × 350 × 78mm
Weight: 9.0 kg
Power: 240V (AU Model)

📦 What’s in the Box

Musetec DAC Unit
Remote Control
USB Cable
US Standard Power Cord
T2 Hex Key (for remote battery compartment)
USB Flash Drive with User Manual (digital version only)
Warranty Card

Designed for audiophiles who demand no compromise.
From DSD512 capability to a hand-selected analog stage and exotic passive components, the Musetec 9038Pro DAC sets a new benchmark for high-fidelity digital playback.

L.K.S

L.K.S MH-DA005 Dual ES9038Pro Digital to Analog Convertor (DAC)
